Redirect crowd to https

falkeckert

Hello,

how can i redirect to https?

In the server.xml i configured an http connector on Port 8095, redirect Port 443 and proxyname, proxyport, scheme.

In the web.xml security constraints are inserts with pattern /* or /crowd/*

The apache http server listen on Port 80 and 443 with proxy to Port 8095.

Any ideas?

Best regards

Falk

Accepted answers

All comments

AnnWorley

Hi Falk,

I understand you want tomake sure all traffic to your Crowd server goes through https (SSL).

To redirect at the Apache proxy, please see: Redirect Request to SSL and Redirect.

To redirect at the Tomcat level, please make sure you are editing the web.xml at <Crowd_install>/crowd-webapp/WEB-INF and not the one at <Crowd_install>/apache-tomcat/conf.

Add the following declaration to the end of the file, before the </web-app>tag:

<security-constraint>
 <web-resource-collection>
 <web-resource-name>Restricted URLs</web-resource-name>
 <url-pattern>/</url-pattern>
 </web-resource-collection>
 <user-data-constraint>
 <transport-guarantee>CONFIDENTIAL</transport-guarantee>
 </user-data-constraint>
</security-constraint>

Crowd will have to be restarted to pick up the change to the web.xml.

I look forward to hearing whether either of these redirect methods work for you.

Thanks,

Ann

Jeffrey Thornsen

Hello,

I know this question is semi-old, but it's a top hit on google and wanted to provide some more guidance here

This "works" but only for when you visit the actual crowd webapp at http://<server>/crowd

It does not apply to the main landing page of crowd (i.e. the tomcat ROOT page) at http://<server>/

This is because the Crowd root page, as well as the openidserver and openidclient applications are each considered a separate webapp by Tomcat, and therefore each one has its own web.xml which you have to edit and add this block of configuration text into.

So, in total you have to edit a whole bunch of web.xml files if you want to ensure that all Crowd pages are always served over HTTPS:

${CROWD_DIR}/apache-tomcat/webapps/ROOT/WEB-INF/web.xml
${CROWD_DIR}/crowd-webapp/WEB-INF/web.xml
${CROWD_DIR}/crowd-openidclient-webapp/WEB-INF/web.xml
${CROWD_DIR}/crowd-openidserver-webapp/WEB-INF/web.xml

You also need to ensure that in your tomcat Connectors in ${CROWD_DIR}/apache-tomcat/conf/server.xml has valid values for redirectPort (typically 443 or 8443 for HTTPS).

Matt Parks_3102xa

I'm trying to run Crowd 2.12.0 on HTTPS per the instructions below, but am not having any success:

https://confluence.atlassian.com/crowd0212/configuring-crowd-to-work-with-ssl-935372574.html

In addition to the steps in the link, I also updated the four web.xml files, putting in what Ann recommended (although I was wondering if I needed to replace the "Restricted URLs" and "CONFIDENTIAL" strings with something else).

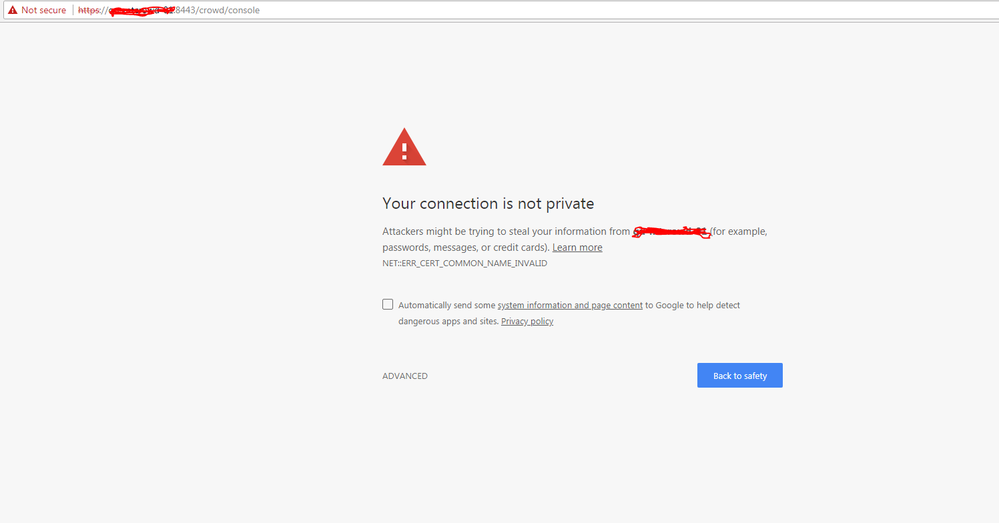

After doing this and restarting Crowd, I was not able to sucessfully log into either Confluence or Jira (which are using Crowd). Whether I had the information in the web.xml files, I'm getting a message that "your connection is not private" when I go to https://{localhost}:8443/crowd/console.

I'm running all of my Atlassian Apps on Linux. Both Jira and Confluence are on the latest/greatest (6.8.2 for Confluence, 7.9.2 for Jira).

Is there something simple that I'm missing?

Thanks,
Matt

AnnWorley

Hi Matt,

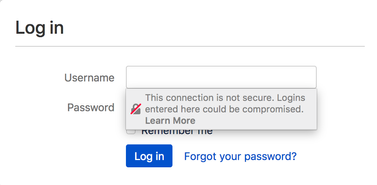

Are you using a self signed certificate and getting the insecure connection message from Firefox, similar to this:

Screen Shot 2018-05-29 at 10.30.42 AM.png

If so, the browser may be alerting you that the redirection is working but the cert is not in the browser's trusted certificates. If you cancel the error can you still log in? What if you use a different browser?

Thanks,
Ann
