Items moving to Done on Scrum Boartd

Randy D Mosier April 19, 2022

Currently, I am a ScrumMaster and my Product Owner set up one of our Jira Boards. I am noticing that on one of our boards [he made]  it puts a line through what is done but is not moving stories into the swim lanes [To Do, In Progress, Done] I have looked at both boards and I am not finding a setting to resolve this issue. One board works correctly and one does not.


Do you have any idea where this is located in the settings?

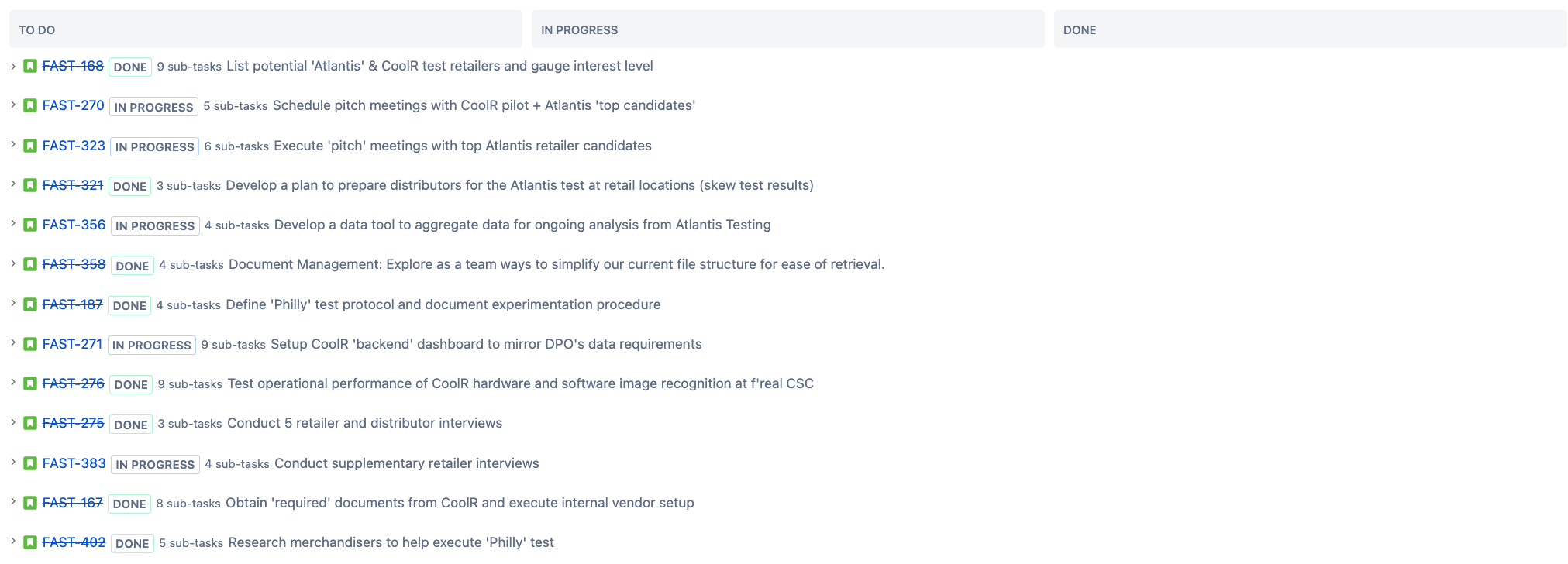

Screen Shot 2022-04-19 at 1.42.14 PM.png

1 answer

0 votes
Trudy Claspill
Community Leader
Community Leader
Community Leaders are connectors, ambassadors, and mentors. On the online community, they serve as thought leaders, product experts, and moderators.
April 19, 2022

First, your use of the term "swim lane" is incorrect. The to Do, In Progress, and Done columns are not "swim lanes". Those show the status of the issues.

Swim lanes are a way to create vertical groupings of issues. There are some default options for those swim lanes, like Epic or Story. In manually created boards (most often used with Company Managed projects) swim lanes can also be based on JQL issue filtering statements.

Also, please note that for a Team Managed project an agile board will be created automatically for the project. The swim lane functionality options are different between the board automatically created for a Team Managed project and a manually created board. And managing the configuration of these two types of boards is entirely different.

The board image that you provided looks to me like a manually created board, not the board automatically created for a Team Managed project.


The ">" to the left of the issue icons indicate that is a Swim lane that has been collapsed. It appears that the board has been set up to use Stories for the swim lane groupings. The grouping that is used for the swim lane results in that item itself not being shown in the status columns. That item becomes a header for the issues that are grouped in the swim lane. The same is true when you use the Group By option on a board automatically created with a Team managed project. The issues that is the "header" for the grouping will not move through the status columns. Only the issue within the group will move through the status columns.

This is not "incorrect" functionality. This is by design.


If you can clarify the actual problem you are trying to solve, and for which board, and we can determine if that board is the one automatically created for the Team Managed project or a manually created board, we'll be able to provide better guidance.

Randy D Mosier April 21, 2022

Realized after I sent the message it's a company-run board and found that it was set to Stories under swim lanes; making everything line up together rather than in the columns. I changed the settings.
